FlashBot — Support Manual

Closed-compartment delivery robot for hospitality and commercial environments, featuring secure compartment doors, autonomous navigation, and optional UV disinfection.

Page 1: Overview

What is the FlashBot?

The FlashBot is a closed-compartment delivery robot built for restaurants, hotels, offices, and other commercial venues. It carries food, packages, and other items in secure compartments that only open at the assigned destination, preventing tampering or mix-ups during transit.

The FlashBot uses SLAM and VSLAM+ positioning technology to navigate autonomously through indoor spaces. It features a 10.1-inch LCD touchscreen for task assignment, a 10W stereo speaker for voice interaction, and supports both manual charging and automatic charging station docking. With up to 9 hours of battery life and adjustable compartment configurations (2 to 4 doors), the FlashBot handles a wide range of delivery workflows out of the box.

The robot is designed for flat indoor surfaces and requires a minimum aisle width of 70 cm. It can surmount small obstacles up to 2 cm high and cross gaps up to 3.5 cm wide, making it suitable for most commercial floor plans. An optional elevator control system enables multi-floor operation.

Models and Variants

Detail Value
Model number FBBDR2
Compartment doors 2 to 4 (adjustable)
Partition plate Removable (creates larger single compartment)

At a Glance

Page 2: Specifications

Specification Value
Model FBBDR2
Dimensions (L x W x H) 53.8 x 53.4 x 105.2 cm
Load capacity 20 kg total (10 kg per tray)
Number of compartment doors 2 to 4 (adjustable)
Single compartment size (L x W x H) 18.7 x 41 x 28 cm
Dual compartment size (L x W x H) 38 x 41 x 28 cm
Maximum speed 1.2 m/s
Recommended speed 0.8 m/s
Battery capacity 10 Ah
Battery life Approx. 9 hours
Charging time (charger) 3.5 hours (0-100%)
Charging time (station) 4 hours (0-100%)
Charger input AC 100V-240V, 50/60 Hz
Charger output 29.4V, 3.5A
Positioning technology SLAM, VSLAM+
Screen 10.1-inch LCD
Speaker 10W stereo
Minimum travel width 70 cm
Maximum surmountable height 2 cm
Maximum surmountable gap 3.5 cm
Maximum climbing angle 8 degrees
Enclosure material Industrial plastic + aviation-grade aluminium alloy
Working temperature 0 to 40 degrees C
Storage temperature -20 to 60 degrees C
WiFi 2.4 GHz and 5 GHz
4G bands B1/B3/B7/B8/B20/B28/B34/B38/B40/B41

Page 3: Product Components

FlashBot — Appearance and Components
Component diagram — FlashBot

External Components

# Component Description
1 Emergency stop switch Top-mounted red button; halts all movement immediately
2 Compartment doors 2 to 4 adjustable doors with removable partition plates
3 Anti-collision strip Perimeter strip that detects contact with obstacles
4 Drive wheels Two powered wheels providing locomotion
5 Auxiliary wheels Support wheels for stability
6 LCD screen 10.1-inch touchscreen for task management
7 Logo indicator light Multi-colour LED showing status and battery level
8 Power switch Key switch + power button for on/off control
9 Charging port cover Protects the manual charging socket
10 Charging electrode plate Contact plates for automatic charging station docking
11 Reserved port Expansion port for future accessories
12 Handles Not listed (enclosed body design)

Sensors and Navigation

Sensor Location Purpose
Lidar Front-facing Primary distance sensing and mapping
Downward RGBD sensor Lower body Floor detection, obstacle avoidance at ground level
Upward RGBD sensor Upper body Overhead obstacle detection
Camera Front Visual recognition and VSLAM+ positioning

Key Switch

The FlashBot requires a key switch to be turned on before the power switch will function. The key switch controls the power supply to the robot.

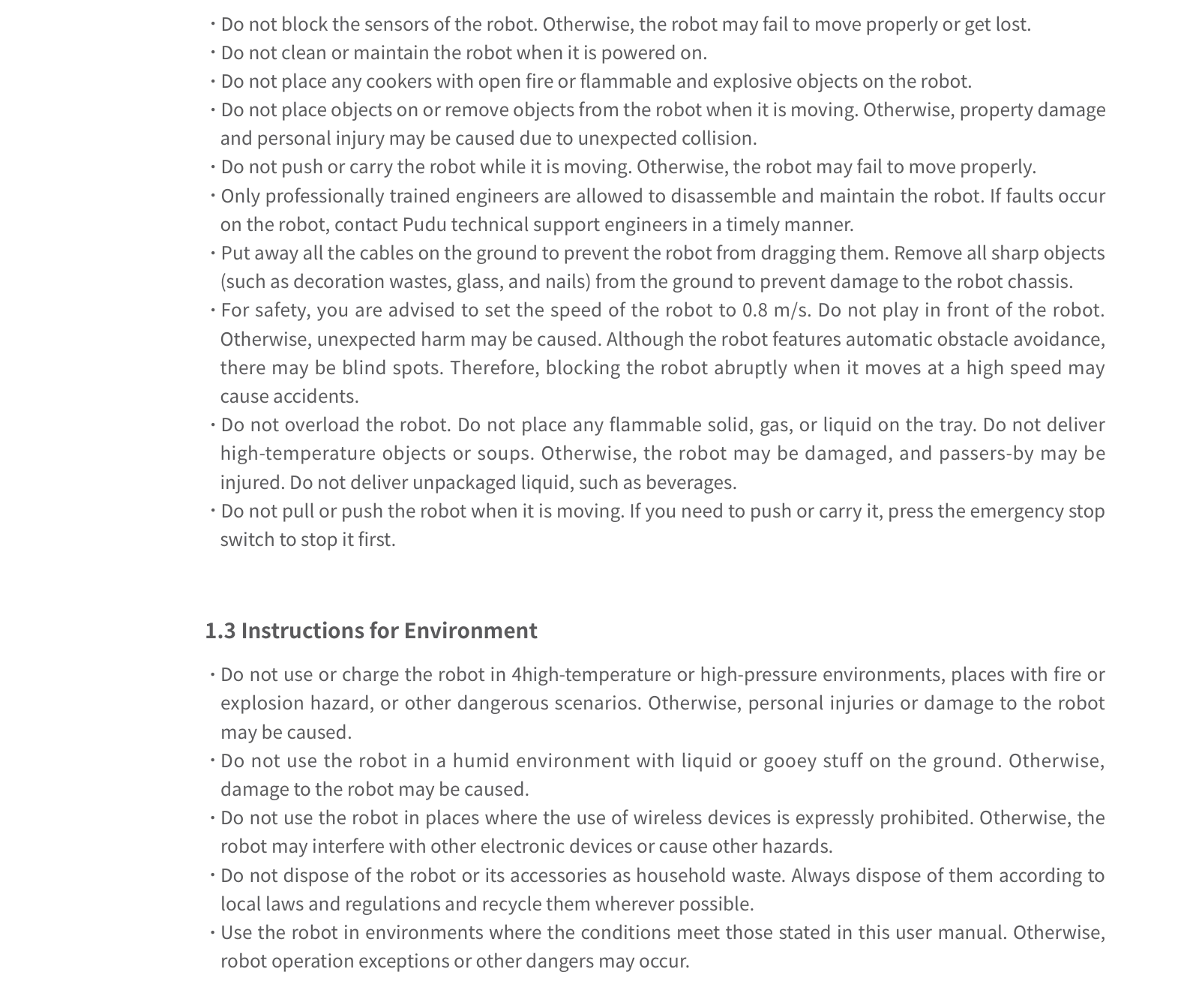

Page 4: Safety Instructions

Before You Start

Electrical Safety

Operating Safety

Environmental Requirements

Warnings

Page 5: Basic Operation

Powering On

  1. Turn the key switch to the ON position (this enables the power supply).
  2. Push the robot to a designated startup positioning location. The charging station can also serve as a startup location. Multiple startup locations are supported.
  3. Press the power switch briefly (approximately 0.5 seconds).
  4. Wait for the logo indicator to turn blue and the screen to light up.
  5. The robot is ready to receive tasks.

Powering Off

  1. Press and hold the power switch for 6 seconds.
  2. A shutdown prompt appears on the screen. Tap "Shut Down."
  3. Wait until both the logo indicator and the screen turn off completely.

Force Shutdown

If the screen is unresponsive and the normal shutdown does not work:

  1. Press and hold the power switch continuously for 12 seconds.
  2. The robot powers off completely.
  3. Wait 10 seconds, then press the power switch for 0.5 seconds to restart.

Pausing Operation

Emergency Stop

To activate: Press the red emergency stop switch firmly (located on top of the robot). All movement stops immediately.

To release: Twist the emergency stop switch clockwise. After release, enter the administrator password to modify tasks or resume operation.

Important: Never attempt to physically grab or push a moving robot without pressing the emergency stop first.

Moving the Robot Manually

  1. Press the emergency stop switch or power off the robot.
  2. Push the robot by hand to the desired location.
  3. Release the emergency stop (twist clockwise) or power on to resume.

Page 6: Charging and Battery

Charging Methods

Method 1: Direct Charger

  1. Open the charging port cover on the robot.
  2. Plug the supplied charger into the robot's charging port.
  3. Plug the charger into a mains outlet (AC 100V-240V).
  4. Charging takes approximately 3.5 hours from 0% to 100%.
  5. If the robot is powered on, the screen displays "Charging in progress."
  6. Unplug when fully charged (solid blue indicator).

Method 2: Charging Station (Pile)

  1. Tap "Charge Now" on the home screen.
  2. The robot automatically navigates to the charging station.
  3. The robot aligns its electrode plates with the station contacts and begins charging.
  4. Charging takes approximately 4 hours from 0% to 100%.
  5. The charging station can also serve as a startup positioning location.

Manual Docking

If auto-docking fails, push the robot into the charging station manually, aligning the electrode plates on the robot with those on the station. Ensure at least 1 metre of clear space in front of the station.

Battery Information

Detail Value
Battery capacity 10 Ah
Runtime on full charge Approx. 9 hours
Battery type Rechargeable (non-removable)
Charger output 29.4V, 3.5A

Charging Indicators

The logo indicator light uses a breathing pattern to show battery level:

Indicator Colour Battery Range
Purple (breathing) 0-30%
Yellow (breathing) 30-60%
Green (breathing) 60-90%
Blue (breathing) 90-100%
Blue (solid) 100% — fully charged

These indicators apply during both charging and normal operation.

Battery Care Tips

Page 7: Modes and Functions

Delivery Mode

Description: The primary operating mode. Items are placed into compartments and assigned to destination tables or locations. The robot navigates to each destination and opens only the assigned compartment door.

Steps: 1. Tap the screen to enter delivery mode (default password: 0000). 2. Place items into a compartment. 3. Assign a destination to the compartment via the touchscreen. 4. Repeat for additional compartments if needed. 5. Tap Start. The robot navigates to each destination in sequence. 6. At each destination, only the assigned compartment door opens. 7. If no interaction occurs within 30 seconds, the screen returns to the greeting display.

Best use case: Restaurants, hotels, and offices delivering food, packages, or supplies to specific tables or rooms.

Escorting Mode

Description: The robot guides guests from one location to another. Staff select a destination and the robot leads the way, with the guest following behind.

Steps: 1. Select escorting mode on the touchscreen. 2. Choose the destination location. 3. The robot begins moving toward the destination. 4. The guest follows the robot.

Best use case: Restaurants and hotels for welcoming and seating guests, or guiding visitors in large venues.

Greeting Mode

Description: The robot interacts with guests via voice at its current location, serving as a welcome point.

Best use case: Lobby or entrance greeting in restaurants and hotels.

One-Tap Charging

Description: A single tap sends the robot to the charging station automatically.

Steps: 1. Tap "Charge Now" on the home screen. 2. The robot navigates to the charging station and begins charging.

Additional Features

Page 8: Maintenance and Servicing

Maintenance Schedule

Part Frequency Method
Compartment doors Weekly Wipe with a dry cloth. Check hinges for smooth operation.
Lidar and sensors Weekly Wipe lens surfaces gently with a dry, lint-free cloth.
Drive wheels Weekly Inspect for wear, debris, or damage. Clean with a dry cloth.
Auxiliary wheels Weekly Check for smooth rotation. Clean with a dry cloth.
Anti-collision strip Monthly Inspect for damage or deformation. Replace if worn.
Charging electrode plates Monthly Wipe contacts with a dry cloth. Check for corrosion.
LCD screen Monthly Clean with a soft, dry cloth. Do not use chemicals.
Robot body and exterior Monthly Wipe down with a clean dry cloth. Check for loose panels.
Emergency stop switch Monthly Test by pressing and releasing. Confirm proper function.
Logo indicator light Monthly Confirm all colours display correctly during operation.

Cleaning

When to Replace Parts

Page 9: Troubleshooting

Issue 1: Robot does not power on

What you see: No response when pressing the power switch. Logo indicator and screen remain off.

Likely causes: Battery fully depleted. Power switch fault. Internal hardware failure.

What to check: 1. Connect the supplied charger directly to the charging port and wait 15 minutes. 2. Check that the charger LED indicates it is supplying power. 3. Try pressing the power switch for 0.5 seconds again. 4. If still unresponsive, try a forced power cycle by holding the power switch for 12 seconds, then press again for 0.5 seconds.

Solution: If the robot powers on after charging, the battery was depleted. Review your charging schedule.

Escalate if: The robot does not power on after 30 minutes of charging and a forced power cycle. Contact HUTECH technical support.

Issue 2: Robot does not charge

What you see: Plugging in the charger or docking at the charging station produces no indicator change. Screen does not show "Charging in progress."

Likely causes: Damaged charger cable. Dirty charging contacts. Incorrect mains voltage. Faulty charging station alignment.

What to check: 1. Verify the mains outlet is working by testing with another device. 2. Inspect the charger cable for visible damage or loose connections. 3. Clean the charging electrode plates on both the robot and the station with a dry cloth. 4. If using the charging station, ensure the robot is properly aligned with the station contacts. 5. Try charging with the cable directly to rule out a charging station issue.

Solution: Replace a damaged charger cable. Clean dirty contacts. Reposition the robot on the charging station ensuring electrode plates align.

Escalate if: The robot does not charge with a confirmed working charger and clean contacts. Contact HUTECH support — the battery or internal charging circuit may need service.

Issue 3: Robot gets lost or cannot navigate to destination

What you see: Robot stops mid-route, spins in place, or returns to the start without reaching the destination.

Likely causes: Sensors blocked or dirty. Environment has changed significantly since the map was created. Path too narrow. Obstacles in the route.

What to check: 1. Check all sensors (lidar, upward/downward RGBD, camera) for dirt, smudges, or physical obstructions. 2. Clean sensor surfaces with a dry, lint-free cloth. 3. Verify the route is at least 70 cm wide with no new obstacles. 4. Check that no highly reflective surfaces (mirrors, glass walls) are confusing the lidar. 5. Confirm the destination still exists on the configured map.

Solution: Clean sensors. Remove obstacles from the path. If the environment layout has changed (furniture moved, walls added), the map may need updating by a trained technician.

Escalate if: Navigation problems persist after sensor cleaning and path verification. The map likely needs recalibration by the manufacturer technical support.

Issue 4: Emergency stop switch is stuck or not responding

What you see: The emergency stop button does not press in, or pressing it does not stop the robot.

Likely causes: Mechanical jam in the switch. Wiring fault. Switch already engaged (robot already stopped).

What to check: 1. Check if the button is already pressed in — it may need to be twisted clockwise to release. 2. Inspect the button for visible damage or debris around it. 3. Power off the robot using the power switch (hold 6 seconds) as an alternative. 4. If neither the emergency stop nor the power switch stops movement, hold the power switch for 12 seconds for a forced shutdown.

Solution: Release a stuck button by twisting clockwise. Clear any debris around the switch mechanism.

Escalate if: The emergency stop switch is physically damaged or the robot does not respond to either stop method. Cease use immediately and contact HUTECH technical support.

Issue 5: Compartment door does not open at destination

What you see: Robot arrives at the delivery location but the compartment door remains closed.

Likely causes: Incorrect compartment-to-destination assignment. Mechanical door jam. Software glitch.

What to check: 1. Verify on the screen that the correct destination was assigned to the compartment. 2. Check that the robot has fully stopped and confirmed arrival (screen should show arrival prompt). 3. Wait up to 30 seconds — the door may take a moment to trigger. 4. Check for any physical obstruction preventing the door from opening. 5. Restart the robot and retry the delivery.

Solution: Reassign the correct destination to the compartment. Remove any physical obstruction. Restart the robot if the issue appears to be a software glitch.

Escalate if: Doors consistently fail to open after confirming correct setup and restarting. Contact HUTECH technical support — the door mechanism may need repair.

Issue 6: Robot moves erratically or drifts off course

What you see: Robot veers to one side, makes unexpected turns, or bumps into obstacles despite having a clear path.

Likely causes: Dirty or damaged drive wheels. Debris wrapped around wheel axles. Sensor obstruction. Low battery affecting motor power.

What to check: 1. Power off the robot and inspect both drive wheels for debris, hair, or thread wrapped around the axles. 2. Check that the anti-collision strip is intact and not pushed inward. 3. Clean all sensors (lidar, RGBD, camera) with a dry cloth. 4. Check the battery level — low charge can cause inconsistent motor behaviour. 5. Ensure the floor surface is clean and dry with no liquid or gooey substances.

Solution: Remove debris from wheels and axles. Clean sensors. Charge the robot if the battery is low. Ensure the floor is suitable (flat, dry, free of obstacles under 2 cm that could catch wheels).

Escalate if: Erratic movement continues on a clean, flat surface with clean sensors and full battery. Contact HUTECH technical support — a motor or sensor calibration issue may exist.

Issue 7: Screen is unresponsive or frozen

What you see: Touchscreen does not respond to taps. Display is frozen on one screen. Screen is black but indicator light is on.

Likely causes: Software crash. Screen hardware fault. System overload.

What to check: 1. Wait 30 seconds to see if the system recovers on its own. 2. If the robot is moving, press the emergency stop switch first. 3. Attempt a normal shutdown by holding the power switch for 6 seconds. 4. If that fails, perform a forced shutdown by holding the power switch for 12 seconds. 5. Wait 10 seconds, then power on again.

Solution: A restart resolves most screen freezes. If the screen recovers after restart, monitor for recurrence. Clean the screen surface — dirt or moisture can interfere with touch sensitivity.

Escalate if: The screen remains unresponsive after a full restart cycle, or the problem recurs frequently. Contact HUTECH technical support.

Issue 8: Robot makes unusual noises during movement

What you see: Grinding, clicking, or squeaking sounds during travel that were not present before.

Likely causes: Debris caught in drive or auxiliary wheels. Worn wheel surfaces. Loose internal component. Floor surface irregularities.

What to check: 1. Power off the robot and press the emergency stop. 2. Inspect all wheels (drive and auxiliary) for trapped debris, hair, or foreign objects. 3. Manually rotate each wheel to check for grinding or resistance. 4. Check the anti-collision strip for loose sections. 5. Inspect the floor path for sharp debris, bumps, or uneven surfaces.

Solution: Remove any debris from wheels. If wheels show visible wear, schedule a replacement through HUTECH support. Ensure the operating surface is smooth and flat.

Escalate if: Noises persist after debris removal, or if wheels show significant wear. Contact HUTECH technical support for wheel replacement or internal inspection.

Issue 9: Battery drains much faster than expected

What you see: Runtime is significantly less than the rated 9 hours. Battery percentage drops quickly during use.

Likely causes: Aged battery. Consistently running at maximum speed. Heavy loads. High ambient temperature. Frequent door operations.

What to check: 1. Note the actual runtime from full charge to 20% under normal conditions. 2. Check the speed setting — higher speeds consume more battery. 3. Verify loads are within the 20 kg limit. 4. Check the ambient temperature is within 0-40 degrees C. 5. Ensure the robot is not repeatedly running low-battery cycles (below 20%) which degrade battery health over time.

Solution: Reduce speed to 0.8 m/s. Keep loads within rated limits. Charge before battery drops below 20%. Operate within rated temperature range.

Escalate if: Runtime is less than half the rated duration under normal conditions with the above measures in place. The battery may need replacement — contact HUTECH technical support.

Issue 10: Robot cannot dock with charging station

What you see: Robot approaches the charging station but fails to connect. Repeatedly attempts and backs away. Charging does not begin after docking.

Likely causes: Misaligned charging electrode plates. Dirty contacts on robot or station. Charging station not powered. Station position has shifted.

What to check: 1. Verify the charging station is plugged in and powered. 2. Clean the electrode plates on both the robot and the station with a dry cloth. 3. Check that nothing is blocking the station approach path (at least 1 metre clear in front). 4. Ensure the charging station has not been moved from its mapped position. 5. Try manually pushing the robot into the station, aligning the contacts.

Solution: Clean contacts. Ensure clear approach path. If the station was moved, it may need to be remapped by a technician.

Escalate if: The robot repeatedly fails to dock despite clean contacts and clear approach. Contact HUTECH technical support to check station alignment and robot docking calibration.

Page 10: Frequently Asked Questions

Charging and Battery

How long does the FlashBot take to fully charge? About 3.5 hours via the supplied charger or 4 hours via the charging station, from 0% to 100%. During charging, the screen shows "Charging in progress" if the robot is powered on. The logo indicator colour shows battery level: purple (0-30%), yellow (30-60%), green (60-90%), blue (90-100%), and solid blue at 100%.

How do I know the current battery level? The logo indicator uses a breathing pattern: purple (0-30%), yellow (30-60%), green (60-90%), blue (90-100%). Solid blue means 100%. The exact percentage is also visible on the LCD screen.

Can I use a third-party charger? No. Only use the charger supplied with the FlashBot. Using a non-original charger risks damaging the battery or the robot and will void the warranty. The charger is rated at 29.4V, 3.5A output. Contact HUTECH support for a replacement if the original is damaged.

When should I charge the robot? Charge when the battery drops below 20%. Running on low battery for extended periods can permanently reduce battery capacity. For best battery health, avoid letting the battery drain completely before recharging.

How long does the battery last on a full charge? Approximately 9 hours under normal operating conditions. Actual runtime varies depending on speed settings, load weight, number of deliveries, floor conditions, and environmental temperature.

Operation

How do I power on the FlashBot? Push it to a designated startup positioning location. Press the power switch for 0.5 seconds. Wait for the logo indicator to turn blue and the screen to light up. The charging station can also serve as a startup location. Multiple positioning locations are supported.

How do I power off the FlashBot? Hold the power switch for 6 seconds. A shutdown prompt appears on screen — tap "Shut Down." Wait until both the logo indicator and the screen turn off completely. For a forced shutdown (screen unresponsive), hold the power switch for 12 seconds.

What is the default password? The initial password is 0000. This is used for delivery mode and administrator settings. Change it during initial setup for security. Contact HUTECH support if locked out.

How wide do doorways need to be? At least 70 cm. The robot can surmount obstacles up to 2 cm high and cross gaps up to 3.5 cm wide. Slopes must not exceed 8 degrees. For long corridors, 1 m width is recommended. For two-way robot traffic, 2 m is needed.

Can the FlashBot use lifts/elevators? Yes, with the optional elevator control system (requires professional installation). The robot calls lifts and travels between floors autonomously. It cannot be paused while waiting for or riding an elevator.

What happens when the robot reaches its destination? Only the compartment door linked to that destination opens. Other compartments remain locked. If no one interacts within 30 seconds, the screen reverts to the greeting display.

What happens if the FlashBot is paused during a delivery task? An administrator password (default: 0000) is required to modify tasks during a pause. If no action is taken during the pause, the robot automatically resumes its previous task after the timeout period.

Safety

What should I do in an emergency while the robot is moving? Press the red emergency stop switch immediately. It is located on top of the robot. After the situation is resolved, enter the administrator password to modify tasks or resume. Never physically grab or push a moving robot without pressing the emergency stop first.

What is the maximum weight I can load? 20 kg total, with 10 kg maximum per tray. Overloading can cause navigation errors, motor strain, and potential tipping. Do not place heavy items on one side only. No flammable solids, gases, liquids, high-temperature items, or unpackaged beverages.

Maintenance

How should I clean the FlashBot? Wipe with a clean, dry cloth while the robot is powered off. Use a soft, dry cloth on the body, screen, sensors, and wheels. Never use water, chemical cleaners, or abrasive materials. Pay special attention to lidar and RGBD sensor lenses — smudges impair navigation.

General

Can I remove the vertical partition inside the compartments? Yes. Removing the partition creates a larger single compartment (38 x 41 x 28 cm) instead of two smaller ones (18.7 x 41 x 28 cm each). The number of compartment doors is adjustable between 2 and 4.

Does the FlashBot have an autonomous disinfection function? Yes. When enabled in settings, it uses UV light to disinfect compartments during delivery and standby periods. Availability may vary by model and firmware version.

Does the FlashBot support greeting and escorting functions? Yes. Greeting mode allows voice interaction with guests. Escorting mode guides guests to a selected destination. Staff select the destination on the touchscreen and the robot leads the way.

Page 11: Service and Escalation

When to Contact Support

Before You Call

Gather the following information:

Support Contact
